Portable Eyewash Drench Hose Unit
Portable Eyewash Drench Hose Unit G1562 — ANSI-compliant self-contained emergency wash with dual GS-Plus spray heads and hand-held drench hose, ideal for remote or low-traffic areas.
$3,394.60 (excl GST)

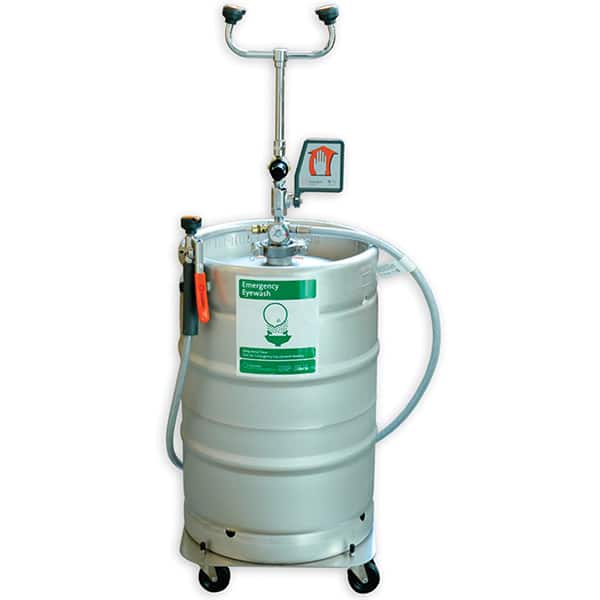

The Portable Eyewash Drench Hose Unit G1562 is a self-contained eyewash and drench hose unit ideal for use in low traffic or remote areas without a permanent potable water supply.
- Application: Self-contained eyewash and eyewash/drench hose units are ideal for use in low traffic areas, and where a continuous supply of potable water is unavailable for plumbed units. 56.78L pressurised units are ideal for floor placement near any hazard and deliver approximately 37.9 usable litres of water for 15 minutes, thus complying with the provisions of ANSI Z358.1-2014 for eyewashes.
- Tank: 56.78L stainless steel pressurised tank with 37.9 litres usable capacity. The tank has built-in carrying handles, Schrader air intake valve, pressure gauge and pressure relief valve.
- Eyewash Spray Head Assembly: Two GS-Plus spray heads. Each head has a flip-top dust cover, internal flow control and filter.
- Eyewash Valve: 1/2 IPS chrome plated brass stay-open ball valve with flag handle. A pressure regulator controls eyewash flow to 0.65 GPM for 15 minutes.
- Drench Hose Unit: Auxiliary hand-held drench hose for rinsing eyes, face or body. The unit has a single GS-Plus spray-type outlet head, self-closing valve with squeeze handle, and 1.8 m reinforced PVC hose.
- Operation: To operate the unit, fill with clean potable water and add bacteriostatic additive (supplied with unit). Additive protects against the growth of bacteria, fungus, algae and acanthamoeba. After filling with water, pressurise unit to 80 PSI. If necessary, adjust the pressure regulator to achieve maximum flow for 15 minutes. The unit should be inspected regularly and water should be changed at least once every six months. Filling instructions included.
- Weight: 16.15 kg empty and 53.93 kg filled.
- Sign: ANSI compliant identification sign permanently affixed to tank.
- Quality Assurance: Unit is fully assembled, pressurised and water tested at the factory. Unit is depressurised and emptied prior to shipping. Some assembly required in the field.
